Pulsarlube M
De Pulsarlube M bestaat uit een verticale plunjerpomp en een microprocessor, die zorgen voor een gemiddelde werkdruk van 30-60 bar (435-745 psi). De unit is ontworpen om betrouwbare smering te garanderen en tegelijkertijd smeerkosten te verlagen met kostenbesparende servicepacks.
Ontdek meer over de Pulsarlube M
Product bestellen
30kgf/cm²
Up to 8 lube points for multi-point installation. Max. 10m (30ft) for single point.
-40 °C
Optional Lithium Battery Pack available for low temperature usage.
LCD
Easy to program with built-in LCD and simple button controls.
Service Pack
Substantial savings from the use of replaceable grease pouches and battery packs.

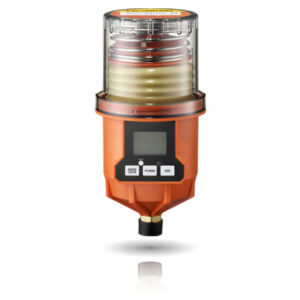

Pulsarlube M Series 60, 125, 250, 500
De automatische elektromechanische vetsmeerunit Pulsarlube M is primair ontworpen om de prestaties van een conventionele, automatische vetsmeerunit van het gas- en elektrochemische type te compenseren. Het apparaat is bovendien veel kosteneffectiever en gebruiksvriendelijker dan vergelijkbare producten.
De Pulsarlube M bestaat uit een verticale zelfaanzuigende pomp, een microprocessorregelsysteem en een groot LCD-scherm. Dit product is ideaal voor toepassingen waarbij een aanzienlijke tegendruk in de smeermiddelleiding aanwezig is, een nauwkeurige smering vereist is of een wegwerpsmeerapparaat van het gas- en elektrochemische niet economisch is.
Product dimensies
- M60: Ø91 mm (3.60”) x 181 mm (7.13”) (H)
- M125: Ø91 mm (3.60”) x 181 mm (7.13”) (H)
- M250: Ø91 mm (3.60”) x 210 mm (8.27”) (H)
- M500: Ø92 mm (3.62”) x 260 mm (10.23”) (H)
Technische specificaties
| Specificatie | Waarde |
|---|---|
| Grease Pouch Capacity | 60ml/125ml/250ml/500ml (replaceable) |
| Remote Installation | Max. 10m (30ft) with O.D. Ø6mm tube |
| Power Supply | DC 4.5V Battery Pack |
| Multi-Point Installation | Max. 6m (20ft) with O.D. Ø6mm tube (Max. 8 lube points) |
| Operating Pressure | 30~60kgf/cm² (425psi~850psi) |
| Packaging | 10 Units/Case |
| Operating Temperature (Standard Alkaline Battery) | -15°C~60°C (5°F~140°F) |
| Operating Temperature (Optional Lithium Battery) | -40°C~60°C (-40°F~140°F) |
| Dispensing Periods (60ml) | 1,2,3…10,11,12 month |
| Dispensing Periods (125ml/250ml) | 1, 2, 3, 6, 12 month & H (15 days) |
| Dispensing Periods (500ml) | 1, 2, 4, 6, 12, 18, 24 month & H (15 days) |
Productcertificaten
| Certificaat | Waarde |
|---|---|
| IP code | IP54 |
| CE/Etc. | CE(CoC) |
Accesoires
Reducer, 3/8Part No.: A001
Reducer, 3/8Part No.: A002-S
Reducer, 3/8Part No.: A002
Socket, 1/4Part No.: A011
Socket, 1/8"F x 1/8"F Adaptor (Brass)Part No.: A012
90° Elbow, 1/4"F x 1/4"F Adaptor (Brass)Part No.: A019
90° Elbow, 1/8"F x 1/8"F Adaptor (Brass)Part No.: A020
90° Elbow, 1/4"M x 1/4"F Adaptor (Brass)Part No.: A021
90° Elbow, 1/8"M x 1/8"F Adaptor (Brass)Part No.: A022
45° Elbow, 1/4"M x 1/4"F Adaptor (Brass)Part No.: A023
45° Elbow, 1/8"M x 1/8"F Adaptor (Brass)Part No.: A024
Pipe, 1/8"M x 1/8"M x 50mm for divider block (Steel)Part No.: A106
Pipe, 1/8"M x 1/8"M x 100mm for divider block (Steel)Part No.: A107
Pipe, 1/8"M x 1/8"M x 150mm for divider block (Steel)Part No.: A108
Pipe, 1/8"M x 1/8"M x 200mm for divider block (Steel)Part No.: A109
Pipe, 1/4"M x 1/4"M x 50mm for divider block (Steel)Part No.: A121
Pipe, 1/4"M x 1/4"M x 100mm for divider block (Steel)Part No.: A122
Pipe, 1/4"M x 1/4"M x 150mm for divider block (Steel)Part No.: A123
Pipe, 1/4"M x 1/4"M x 200mm for divider block (Steel)Part No.: A124
Distribution Tubing, O.D. 5/16" (8mm) Urethan Tubing, 3ft Pre-filled with (Grease Type)Part No.: A212-1
Tube Fitting, Push-In Type, PC8-PT1/8"MPart No.: A239
Mounting Bracket, "L" ShapePart No.: B002
Self Drilling Screw, #8 x 20Part No.: B051
WasherPart No.: B057
Thread Converter, PT1/8"F x NPT1/8"M (Brass)Part No.: A243
Toepassingen
Power Plant
- Water Pumps
- Conveyor Systems
- Electric Motors
- Boilers
Steel Industry
- Conveyor Systems for coke, iron ore, and limestone
- Electric Motors
- Pumps
- Blowers and Fans
Cooling Towers
- Pans
- Blowers
- Pumps
Directe montage installatie
Reducer
| Type | Waarde |
|---|---|
| A001 | Reducer, 3/8″F X 1/4″M Adaptor (Brass) |
| A002 | Reducer, 3/8″F X 1/8″M Adaptor (Brass) |
| A003 | Reducer, 3/8″F x 1/8″M Adaptor (Steel) |
45˚ Elbow
| Type | Waarde |
|---|---|
| A023 | 45° Elbow, 1/4”M X 1/4”F Adaptor (Brass) |
| A024 | 45° Elbow, 1/8”M X 1/8”F Adaptor (Brass) |
90˚ Elbow
| Type | Waarde |
|---|---|
| A019 | 90° Elbow, 1/4”F X 1/4”F Adaptor (Brass) |
| A020 | 90° Elbow, 1/8”F X 1/8”F Adaptor (Brass) |
| A021 | 90° Elbow, 1/4”M X 1/4”F Adaptor (Brass) |
| A022 | 90° Elbow, 1/8”M X1/8”F Adaptor (Brass) |
Socket + Pipe + Reducer
| Type | Waarde |
|---|---|
| A011 | Socket, 1/4″F x 1/4″F Adaptor (Brass) |
| A012 | Socket, 1/8″F x 1/8″F Adaptor (Brass) |
| A121 | Pipe,1/4”M X 1/4”M × 50mm (Steel) |
| A122 | Pipe,1/4”M X 1/4”M × 100mm (Steel) |
| A123 | Pipe,1/4”M X 1/4”M × 150mm (Steel) |
| A124 | Pipe,1/4”M X 1/4”M × 200mm (Steel) |
| A106 | Pipe, 1/8″M x 1/8″M x 50mm for divider block (Steel) |
| A107 | Pipe, 1/8″M x 1/8″M x 150mm for divider Pipe, 1/8″M x 1/8″M x 100mm for divider block (Steel) |
| A108 | Pipe, 1/8″M x 1/8″M x 150mm for divider block (Steel) |
| A109 | Pipe, 1/8″M x 1/8″M x 200mm for divider block (Steel) |
Single point remote installation
Kit No. 2000RC-1
| Type | Waarde |
|---|---|
| A005 | Reducer, 1/4″F x 1/8″ M Adaptor (Brass) |
| B002 | Mounting Bracket, “L”Shape |
| B051 | Self Drilling Screw, #8ⅹ20 |
| B057 | Washer |
| A012 | Socket, 1/8”F x 1/8”F Adaptor (Brass) |
| A239 | Tube Fitting, Push-In Type, PC8-PT1/8″M |
| A212-1 | Distribution Tubing, O.D. 5/16″(8mm). Urethan Tubing, 3ft Pre-filled with (Grease Type) |
| A243 | Thread Converter, PT1/8″F X NPT1/8″M (Brass) |
Note : For remote installation using a tube, use an 8mm O.D. (5/16″) tubing pre-filled with the same or compatible grease as the grease contained in the unit. Recommend using under short dispensing period settings due to powerful dispensing pressure.
Multi-Point installation
Electromechanical Products using a divider block ( up to 8 points )
